The Hidden Cost of Re-Work in Solar CAD Drafting
A 5 MWp ground-mount project in Rajasthan stands halted. Driven piles stand tall, but trenching crews sit idle. The AC cable trench clashes directly with civil drainage swales, and string combiner coordinates on drawing Rev-3 diverge from inverter plinths cast under Rev-2.
In Indian solar EPC execution, drafting is often treated as clerical production rather than precision engineering. Rushing 2D AutoCAD files to release purchase orders creates site rework, cable scrap, idle crews, and delayed grid clearances.
Where Solar EPC Margins Vanish in CAD Files
Drafting shortcuts trigger cascading site expenses that never appear on initial estimates. Three systemic issues drive these losses across solar power plant design projects:
- Layer Clashes and 0-Layer Chaos: Placing civil boundaries, DC strings, inverter pads, and earthing strips on unsegregated layers blinds contractors. Piles get driven over buried utility conduits, forcing pneumatic breaking and re-driving.
- The Manual Cable BOQ Trap: Tracing DC strings with 2D polylines ignores module table drops and trench contours. On a 10 MWp site, an 8% calculation deficit leaves crews short by thousands of meters, forcing emergency procurement and prohibited splice joints per IEC 62548.
- Revision Fragmentation: WhatsApp drawing exchanges cause revision chaos. Procurement purchases 630A isolators from Rev-A, while civil pours plinths for 800A switchgear from Rev-C, draining ₹3–5 Lakhs per megawatt.
Cable Schedules and Statutory Standards
CAD drafting must integrate strict electrical standards. Under IS 732 and IEC 60364, cable tray fill ratios must never exceed 40% to maintain required current derating factors and heat dissipation. Unchecked drafting packs too many multiconductor runs into undersized trays.
When DISCOM or CEIG inspectors verify tray runs against submitted drawings, non-compliance results in immediate stoppage. Coordinating drawings upfront prevents expensive retrofits during solar EPC commissioning.

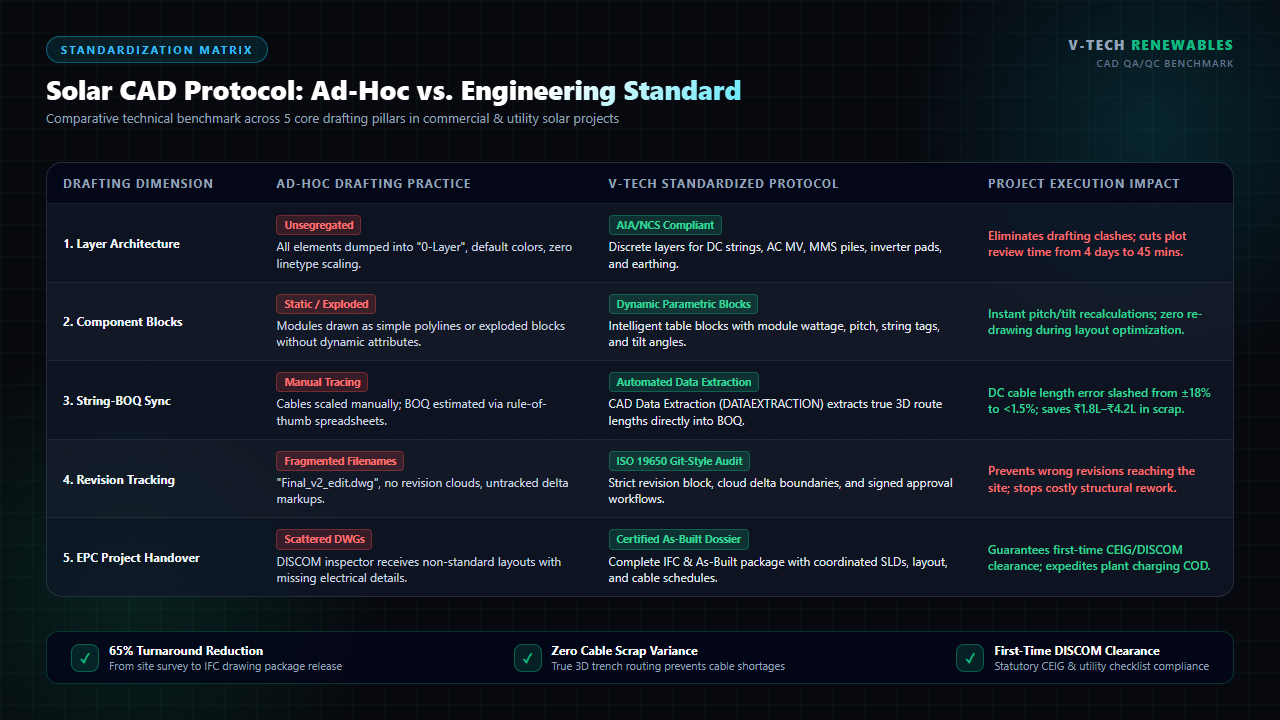

Figure 1: Technical comparison matrix of ad-hoc drafting versus standardized solar CAD protocols.
Drafting Protocol Comparison Matrix
Standardized drafting protocols convert chaotic drawings into verifiable engineering packages:
| Drafting Pillar | Ad-Hoc Practice | Standardized CAD Protocol | Site & Cost Impact |
|---|---|---|---|
| Layer Control | All geometry dumped in 0-layer | AIA/NCS discipline hierarchy | Zero spatial clashes |
| Module Blocks | Exploded lines, static blocks | Dynamic parametric blocks | Instant pitch recalculation |
| Cable BOQ | Manual polyline measurement | Auto-extraction with 3D drop factors | Cable error <1.5% |
| Revision Audit | Uncontrolled filenames | Cloud versioning with delta clouds | Prevents obsolete execution |
Building a Zero-Rework Drafting Protocol
To safeguard project profitability, EPCs must treat CAD files as single-source databases. Pairing standardized layout drawings with disciplined C&I solar SLD practices and verified site survey data eliminates site friction.
Dynamic blocks with embedded module ratings and string assignments enable automated scheduling. Updating the root dynamic block recalculates every drawing sheet and bill of materials simultaneously. This rigor prevents the drawing deficiencies detailed in our guide on grid approval drawing delays.
Frequently Asked Questions
1. Why do mismatched AutoCAD drawings cause severe DC cable overruns on solar sites?
Ad-hoc drafting relies on 2D flat polylines that ignore terrain undulations, vertical drops at inverter racks, and tray bends. Cumulative discrepancies create an 8% to 15% cable deficit, triggering emergency drum procurement and costly splice joints prohibited under IEC 62548.
2. How does standardizing CAD dynamic blocks accelerate solar EPC engineering?
Dynamic blocks embed parametric data—module dimensions, table pitch, and tilt angles—directly into drawing entities. Updating the master block automatically rescales string arrays and updates equipment schedules across all sheets, cutting revision cycles from days to minutes.
3. What CAD drafting documentation errors trigger DISCOM and CEIG rejection during plant handover?
Inspectors reject submittals when layout drawings fail to correlate with Single Line Diagrams (SLDs). Common tripwires include mismatched equipment tags, uncoordinated cable schedules, tray fill ratios violating IS 732, and missing IS 3043 earthing pit coordinates.
